SOLVE: iphone 6s stuck on apple logo - Click here

There are some problems，when your iphone 6s Displays White Apple Logo, What should you do, What is the complete operation to fix the fault? Let’s follow the vipprogrammer offer guide fix it.



Step 1: First of all, turn it on to test. Screen shows recovery mode (also called data cable mode). Use iTunes to root and ascertain the problems. When the white Apple and grey progress bar show, the grey progress bar stops here.

Step 2: If iPhones 6S and its later series have such problem, the NAND Flash, CPU or baseband are damaged. Use i4 assistance’specialized function to root it and find the faulty place.

Step 3: When white Apple shows, the device UDID that i4 assistance reads are 0, as shown in the following picture. UDID exists in NAND Flash, so NAND Flash is faulty. And, the white Apple shows very quickly when rooting (the time from that i4 loads IBEC to that it gets into recovery), which suggests that CPU recognizes NAND Flash. Thus I can be sure that NAND Flash is broken.

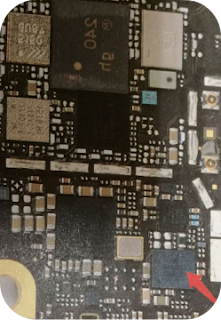

Step 4: After replacing NAND Flash, the rooting goes on smoothly. Trouble is removed. The material object is shown in the picture.



Step 5: After activating it, I find that iPhone can connect computer, but it does not present charge. Considering that customer has changed the USB Control chip, the chip may be broken. Tear down a USB management chip from a iPhone 6 motherboard. Then connect it to computer and it presents normal charging process. The no charging problem is excluded. The material of U2 USB control chip is shown in picture. The USB management chips of iPhone 5S, iPhone 6, iPhone 6 Plus, iPhone 6S and iPhone 6S Plus can be used universally.


Step 6: We had better preheat the NAND Flash, if we want to remove it. If it is not preheated, CPU upper board is very likely to have bumps. Although the bumps are not at the right back place, too much air between the upper and lower board will cause bumps at upper board.

Tips: If you’d like to know more about the preferential iphone repair tool maintenance please read on www.vipprogrammer.com. all of these phone repair tools, and you can find it.
